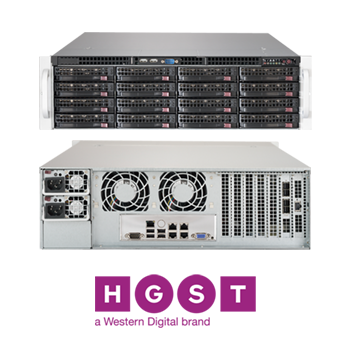

RL3102-X2-R
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
- 24x 288-pin DDR4 DIMM slots
- Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
- 16x 3.5" Hot-swap SAS3/SATA3 Drive Bays
- 2x 2.5" optional rear Hot-swap 2.5" Drive Bays
- 2 PCI-E 3.0 x16 slots
- 3 PCI-E 3.0 x8 slots
- 1 PCI-E 2.0 x4 (in x8) slot
- Quad 10GBase-T LAN w/ Intel® X540
- Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- Slot 3 & 4 occupied by controller and JBOD Expansion Port
- 2x 80mm hot-swap rear exhaust PWM fans
- 920W Redundant Power Supplies Platinum Level (94%)
Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v3/v4 family (up to 145W TDP) *
Dual Socket R3 (LGA 2011)
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
* Please contact Racklive's Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
24x 288-pin DDR4 DIMM slots
Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C612 chipset
SAS
SAS3 (12Gbps) via LSI 3108 AOC; HW RAID
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Quad 10GBase-T LAN with IntelX® X540 Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC
I/O
SATA
10x SATA3 (6Gbps) ports
LAN
4x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
1x RJ45 Dedicated IPMI LAN port
USB
3x USB 3.0 ports (2 rear + 1 Type A)
2x USB 2.0 ports (2 rear)
2x USB 2.0 ports (2 rear)
VGA
1x VGA port
Serial Port / Header
2x Fast UART 16550 serial; 2x COM Ports (1 rear, 1 header)
DOM
2x SuperDOM (Disk on Module) ports
TPM
1x TPM 1.2 20-pin Header
Dimension and Weight
Width
17.2"" (437mm)
Height
5.2"" (132mm)
Depth
25.5"" (648mm)
Weight
Gross Weight: 76 lbs (34.5 kg)
Net Weight: 60 lbs (27.2 kg)
Net Weight: 60 lbs (27.2 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
System Reset button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
HDD activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express
2 PCI-E 3.0 x16 slots
3 PCI-E 3.0 x8 slots
1 PCI-E 2.0 x4 (in x8) slot
Slot 3 & 4 occupied by controller and JBOD Expansion Port
3 PCI-E 3.0 x8 slots
1 PCI-E 2.0 x4 (in x8) slot
Slot 3 & 4 occupied by controller and JBOD Expansion Port
Drive Bay
Hot-swap
16x 3.5"" Hot-swap SAS3/SATA3 Drive Bays
Optional OS Drive
2x 2.5"" optional rear Hot-swap 2.5"" Drive Bays
System Cooling
Fans
2x 80mm hot-swap rear exhaust cooling fans
Power Supply
AC Input
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
100-240 V, 50-60 Hz, 11-4.5 Amp
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
4 Amp @ +5V standby
75 Amp @ +12V
75 Amp @ +12V
System Bios
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0/ 2.0/ 3.0/ 4.0
USB SMBIOS 2.7.1
UEFI 2.3.1
APM 1.2
PCI 2.3
ACPI 1.0/ 2.0/ 3.0/ 4.0
USB SMBIOS 2.7.1
UEFI 2.3.1
Operating Enviroment
RoHS
RoHS Compliant
Environmental Specs
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
