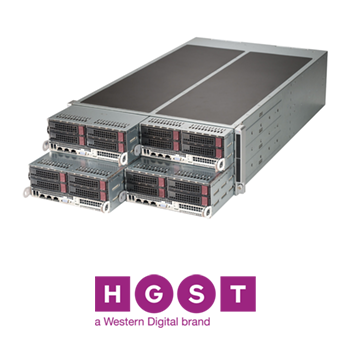

RL4401-X2-R 4U Server

RL4401-X2-R

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • 16x DDR4 DIMM slots
  • Up to 1TB ECC DDR4 2133MHz
  • Expansion slots: 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (Micro Low Profile) See Cable Configuration Map
  • I/O ports: 2 GbE ports, 1 Built-in video, 1 COM/Serial port, 2 USB 3.0 ports
  • Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • (6+2) 3.5" Hot-swap SAS2/SATA3 HDD Bays
  • 2x 80mm 11k RPM middle fans
  • 1 PCI-E 3.0 x16 (LP) + 1 Micro LP
  • 1280W Redundant Power Supplies Platinum Level (95%)

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v3/v4 family (up to 145W TDP) *
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
* Please contact Racklive's Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C612 chipset
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
SAS
SAS2 via LSI 2208 (1GB cache)
HW RAID 0, 1, 5, 6, 10, 50, 60 support
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel® i350 Dual Port Gigabit Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC
I/O
Serial ATA
8x SATA3 (6Gbps) ports
2x SATA3 powered ports that support SATA DOM
SAS
8x SAS2 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports
Video
1x VGA port
Serial Port / Header
1x Fast UART 16550 header
Dimension and Weight
Width
17.63"" (448mm)
Height
6.96"" (177mm)
Depth
29"" (737mm)
Package
28.3"" (W) x 15.0"" (H) x 42.4"" (D)
Weight
Gross Weight: 150 lbs (68.04 kg)
Net Weight: 105 lbs (47.63 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 (LP) + 1 Micro LP
Drive Bay
Hot-swap
(6+2) 3.5"" Hot-swap SAS/SATA HDD trays
System Cooling
Fans
2x 8cm 11k RPM middle fans
Power Supply
AC Input
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
1000W Output @ 100-140V, 8-12A, 50-60Hz
1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
1000W: +12V/83A; +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A
System Bios
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0/ 2.0
USB Keyboard support
SMBIOS 2.3
UEFI
Operating Enviroment
RoHS
RoHS Compliant
Environmental Specs
Operating Temperature: 5°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
