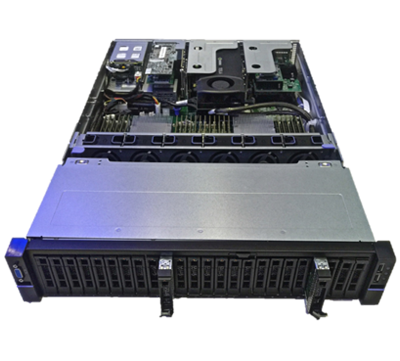

2U24 Flash Storage Platform

2U24 Flash Storage Platform

  • Designed for Software-Defined Storage (SDS) systems
  • High density – Up to 184TB raw capacity in a 2U enclosure
  • Scalable – Connect up to six hosts via the 12 Gb/s SAS-3 interface
  • Performance – Up to 4.7M IOPS, 23 GB/s with less than 1ms latency



2U24 Flash Storage PlatformThe 2U24 Flash Storage Platform is a key element of next-generation Software-Defined Storage (SDS) systems. The platform balances high performance with capacity, delivering high IOPS with low latency at up to 184TB capacity.

Designed for Enterprise and Cloud Storage

By decoupling available storage from CPU resources, the platform offers the flexibility to improve the compute-to-capacity ratio. The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers requiring dense, shared flash storage.






Model Number
1ES0243
SSD Type
SATA, 960GB
Endurance
Read-Intensive, 0.6 DW/D
# of Drives
12
Capacity
11.52
4KB Random Read IOPS
735,000
4KB Random Write IOPS
312,000
Seq Read BW (MB/s)
5,700
Seq Write BW (MB/s)
4,600
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0241
SSD Type
SATA, 960GB
Endurance
Read-Intensive, 0.6 DW/D
# of Drives
24
Capacity
23.04
4KB Random Read IOPS
735,000
4KB Random Write IOPS
312,000
Seq Read BW (MB/s)
5,700
Seq Write BW (MB/s)
4,600
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0242
SSD Type
SATA, 1.92TB
Endurance
Read-Intensive, 0.6 DW/D
# of Drives
12
Capacity
23.04
4KB Random Read IOPS
735,000
4KB Random Write IOPS
312,000
Seq Read BW (MB/s)
5,700
Seq Write BW (MB/s)
4,600
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0240
SSD Type
SATA, 1.92TB
Endurance
Read-Intensive, 0.6 DW/D
# of Drives
24
Capacity
46.08
4KB Random Read IOPS
735,000
4KB Random Write IOPS
312,000
Seq Read BW (MB/s)
5,700
Seq Write BW (MB/s)
4,600
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0107
SSD Type
SAS, 3.84TB
Endurance
Read-Intensive, 1 DW/D
# of Drives
12
Capacity
46.08
4KB Random Read IOPS
3,000,000
4KB Random Write IOPS
336,000
Seq Read BW (MB/s)
21,350
Seq Write BW (MB/s)
12,350
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0110
SSD Type
SAS, 3.84TB
Endurance
Read-Intensive, 1 DW/D
# of Drives
24
Capacity
92.16
4KB Random Read IOPS
4,700,000
4KB Random Write IOPS
672,000
Seq Read BW (MB/s)
23,000
Seq Write BW (MB/s)
23,000
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0108
SSD Type
SAS, 7.68TB
Endurance
Read-Intensive, 1 DW/D
# of Drives
12
Capacity
92.16
4KB Random Read IOPS
3,000,000
4KB Random Write IOPS
264,000
Seq Read BW (MB/s)
17,800
Seq Write BW (MB/s)
12,100
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C



Model Number
1ES0111
SSD Type
SAS, 7.68TB
Endurance
Read-Intensive, 1 DW/D
# of Drives
24
Capacity
183.32
4KB Random Read IOPS
4,700,000
4KB Random Write IOPS
528,000
Seq Read BW (MB/s)
23,000
Seq Write BW (MB/s)
23,000
Max. Drives
24 x 2.5" SSDs
Drive Interface
12 GB/s SAS or 6 GB/s SATA
Available SSD Capacities
SAS (1DW/D): 3.84TB, 7.68TB
SATA (0.6DW/D): 960GB, 1.92TB
Host Interface
1+1 I/O Modules (IOM), 3 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
LED Indicators
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions
Height: 87.4mm (3.44”)
Width: 446mm (17.56”)
Depth: 536mm (21.1”)
Weight
Product without SSDs: 18.3kg (40.3lbs)
Product with 24 SSDs: 23.7kg (52.3lbs)
Power
1+1 600W, 80+ Gold
90-264V AC input, auto ranging, 47-63Hz
Cooling
3 fan modules per power supply, front-to-rear system cooling
Fan speed turning via system management interface
Serviceability
Hot-swappable IOM, power supply and SSDs
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C


Highlights

  • Up to 24 Ultrastar 2.5” SAS or SATA SSDs with a range of capacity options
  • Connect up to six hosts via the 12 Gb/s SAS-3 interface
  • Up to 4.7M IOPS, 23 GB/s; <1 ms latency
  • Enterprise-class high availability: hot-swappable SSDs, I/O modules, and PSUs (integrated fans)
  • Easily maintained, SSD modules are front accessible and hot swappable
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • High-Performance Computing
  • Public or Private Cloud
  • Analytics
  • Database
  • Virtualization
  • Scale-Out/Up Configurations
