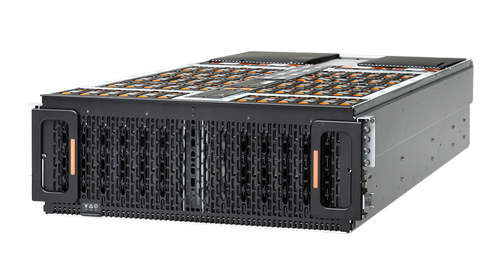

Ultrastar Serv60+8

Ultrastar Serv60+8 Coming Soon!

  • High Density - Up to 60 HGST HelioSeal® HDDs providing up to 780TB of raw storage in a 4U enclosure
  • Hybrid - Support for up to 32 SSDs within the server for data acceleration
  • Innovative - Patented IsoVibe and ArcticFlow technologies improve reliability and reduce power costs


Ultrastar Serv60+8There is a never-ending need to increase data center performance for storage-intensive applications. The SVR2U24 NVMe Storage Server is designed to be a performance-optimized platform for software defined storage (SDS). By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.

Designed for Fast Data

Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the SVR2U24 NVMe Storage Server features the latest Intel® Xeon® CPUs. Chipset, core count and CPU power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the SVR2U24 NVMe Storage Server is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.

General
Available Capacities
HDD-6TB to 12TB
SSD-400GB to 7.68TB (SAS, SATA and NVMe)
M.2 boot drive-120GB to 1.92TB (SATA/PCIe)
Available CPU
2 x Intel Xeon 4114, 2.2GHz, 10C, 85W TDP
2 x Intel Xeon 5118, 2.3GHz, 12C, 105W TDP
2 x Intel Xeon 6140, 2.3GHz, 18C, 140W TDP
Memory
Up to 2TB 3DS LRDIMM or RDIMM (16x DDR4-2666Mhz DIMM Slots)
Management
IPMI 2.0 system management
Redfish (out of band via RJ45)
Maximum Number of Drives
60 x 3.5” SAS or SATA drive slots of which up to 24 may be used for 2.5” SAS or SATA SSDs
Additionally, up to 8 x SAS, SATA or NVMe SSDs in center channel bays
I/O Expansion
2 x USB 2.0
2 x USB 3.0
1 x VGA, DB15
1 x RJ45 BMC / Management
Networking
Dual 10GBaseT Ethernet (RJ45)
LED Indicator
Front and Back Panel: Power, ID, Fault
Fan and Drive: Fault
Serviceability
Hot-swappable power supplies, fans, IO module and drive modules
Expansion Options
Expansion
6 x PCIe Gen3 Slots
1 PCIe Gen3 x 8 slot is occupied by the storage controller for the 60 bays
Power
Power Characteristics
2000W AC, Redundant Power Supplies, (80+ Platinum)
200-240V AC input, auto ranging, 50-60Hz
Physical Size
Rack Size Height x Width x Depth mm (in)
Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 1099mm (43.27”)
Weight kg (lbs)
Product without drives: 40.82kg (90 lbs)
Product fully populated: 95.25kg (210 lbs)
Rack Space Requirements (rack units)
Max of 1177mm (46.34”) w/CMA
Power and Cooling: Operating
Cooling Fans
6 high efficient fans, front-to-rear system cooling with zero-loss backflow prevention
Environmental (operating)
Ambient Temperature
5° to 35°C
Relative Humidity
8% to 90%
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
Relative Humidity
8% to 90%

Features

  • Up to 60 Ultrastar® He12 HDDs (SAS or SATA) plus up to 8 NVMe (SAS or SATA) SSDs
  • Over 900TB of raw storage in 4U possible with planned 14TB drives and 7.68TB SSDs
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Hybrid support for up to 24 slots can be populated with SSDs (SAS or SATA) to create a data acceleration tier
  • 4 rack units height, 1099mm depth
  • Patented IsoVibe technology ensures maximum performance even in heavy workloads
  • Enterprise-grade redundant and hot-swappable PSUs, fans, IO module and drive modules
  • Improved cooling from innovative, patented ArcticFlow technology
  • Rack-mounted top cover for quick and easy service

Applications/Environments

  • Dense server expansion
  • Software-defined storage
  • Private cloud
  • Big data analytics
  • Data tier for service provider
