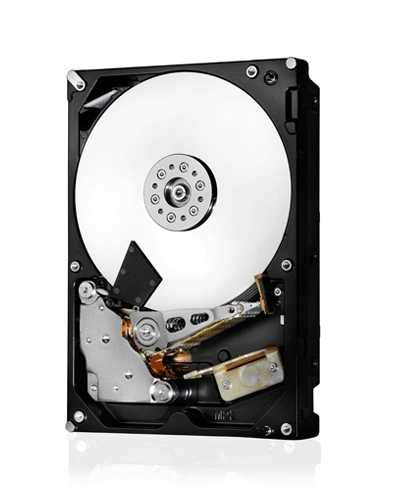

Ultrastar 7K6000

Ultrastar 7K6000

  • 6TB, 5TB, 4TB & 2TB
  • 3.5-inch
  • Enterprise Hard Drive
  • Capacity – Up to 6TB enterprise-class storage on HGST's proven 7th generation, 5-disk platform
  • Performance – Up to 3X faster random writes and 25% faster sequential performance over 7K4000
  • 12Gb/s SAS & 6Gb/s SATA – 12Gb/s SAS for high performance data centers; compatible with 6Gb/s SAS


When you are looking for economical, high-capacity enterprise-class storage, look to the Ultrastar® 7K6000. It delivers the value and performance you need for data center storage. For best-in-class random write and sequential performance, the Ultrastar® 7K6000 delivers 6TB of capacity in a 3.5-inch form factor. Innovations like patented Rotational Vibration Safeguard (RVS) sensor technology optimize drive reliability in multi-drive RAID arrays and rack-mounted systems. Engineered for the highest quality, the Ultrastar 7K6000 passes stringent reliability testing. The ultra-reliable Ultrastar 7K6000 reduces downtime, eliminates service calls and minimizes TCO. Rely on the Ultrastar® 7K6000 to deliver value and performance to the cost-sensitive data center.

SATA Models
SAS Models
General
Model # / Part #
HUS7260xxALN61y
HUS7260xxALE61y
HUS7260xxALA61y*
HUS7260xxAL421y
HUS7260xxAL521y
HUS7260xxALA61y*
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity (GB)
6TB / 5TB / 4TB / 2TB
6TB / 5TB / 4TB / 2TB
Sector Size (Variable, Bytes/sector)
4Kn: 4096 / 512e: 512
4Kn: 4096, 4112, 4160, 4224 / 512e: 51
Max Areal Density (Gbits/sq. in.)
512e/4Kn: 703 (6TB), 599 (<6TB) 512n*: 623
512e/4Kn: 703 (6TB), 599 (<6TB) 512n*: 623
Form Factor
3.5-inch HDD
3.5-inch HDD
Performance
Data Buffer (MB)
128
128
Rotational Speed (RPM)
7200
7200
Latency Average (ms)
4.16
4.16
Interface Transfer Rate (MB/sec, max)
600
1200
Sustained Transfer Rate (MB/sec, typ.)
MB/s: 227 (6TB), 202 (<6TB) / MiB/s: 216 (6TB), 192 (<6TB)
MB/s: 227 (6TB), 202 (<6TB) / MiB/s: 216 (6TB), 192 (<6TB)
Seek Time (read, ms, typical)
7.6 (Read), 8.0 (Write)
7.6 (Read), 8.0 (Write)
Reliability
Error Rate (non-recoverable, bits read)
1 in 10^15
1 in 10^15
MTBF (M hours)
2
2
Load/Unload Cycles
600,000 (at 40ºC)
600,000 (at 40ºC)
Availability (hrs/day x days/wk)
24x7
24x7
Reliability - Warranty (yrs)
5
5
Acoustics
Idle (Bels)
2.9 (Idle), 3.6 (Operating)
2.9 (Idle), 3.6 (Operating)
Power
Requirement
+5 VDC, +12 VDC
+5 VDC, +12 VDC
Operating (W, typical)
9.1
11
Low Power Idle (W, avg)
7.1
7.7
Power Consump. Efficiency Index (W/GB)
1.2W/TB / 0.0012W/GB (6TB)
1.3W/TB / 0.0013W/GB (6TB)
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
715
715
Environmental (operating)
Ambient Temperature
5° to 60°C
5° to 60°C
Shock (half-sine wave)
70
70
Vibration (5 to 500 Hz)
0.67 (XYZ)
0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
-40° to 70°C
Shock (half-sine wave)
300
300
Vibration (5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

*Available in 4TB and 2TB capacities
CAPACITY: One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer’s operating system, and other factors.
MTBF: MTBF target is based on a sample population and is estimated by statistical measurements and acceleration algorithms under median operating conditions.
MTBF ratings are not intended to predict an individual drive’s reliability. MTBF does not constitute a warranty.
SECTOR SIZE: Advanced Format drive: 4K (4096-byte) physical sectors DATA BUFFER: Portion of buffer capacity used for drive firmware.
TRANSFER RATE: MiB/s is 1048576 Bytes/sec, MB/s is 1000000 Bytes/sec.
SEEK TIME: Excludes command overhead.
OPERATING POWER: Calculated based on a Random RW 4KB workload at Queue Depth of 1.
LOW POWER IDLE: Based on use of Idle_A
MODEL NUMBER POSSIBLE VALUES xx=60 (6TB), xx=50 (5TB), xx=40 (4TB), xx=20 (2TB) y=0 (Instant Secure Erase), y=1 (BDE for SATA, TCG SED for SAS), y=4 (Secure Erase), y=5 (FIPS 140-2 certified TCG-SED for SAS only)


Highlights

  • Best-in-class random write and sequential performance
  • Reliable, field-proven, 7th generation 5-disk design
  • Compared to prior generation 7K4000
    • - 50% more capacity (6TB vs. 4TB)
    • - 33% better power efficiency (Watts/TB)
    • - Up to 3X faster random write performance thanks to media cache architecture
    • - 25% faster sequential read/write performance
  • 2M hours MTBF2 rating and 5-year limited warranty
  • 6Gb/s SATA & 12Gb/s SAS provides compatibility with next gen data centers
  • 12Gb/s SAS backwards compatible with 6Gb/s SAS
  • 128MB cache buffer improves response time and data management
  • Secure erase and Self-Encrypting Drive (SED) options
  • Advanced format 4Kn and 512e models
  • 512n format available in 4TB and 2TB capacities supports legacy systems

Applications/Environments

  • Cloud & Hyperscale storage
  • Distributed Files Systems like Ceph™ and Hadoop® to support Big Data Analytics
  • Video surveillance & content distribution
  • Direct & Network Attached Storage (DAS & NAS)
  • RAID arrays
  • Massive scale-out data centers (MSO)
