Servers

Power your innovations with technology solutions that help your business transform and grow

Explore our line of server portfolio designed to address the most challenging workloads so you can work autonomously and collaboratively across all your IT environments. Do you have a specific application requirement? Reach out to our Solution Experts to custom configure a solution tailored to your specific needs.

AIC
Ampere
Dell
Intel DSG
Supermicro

AIC 1U Server SB101-A6

  • Single socket 1U platform with 3rd Gen Intel® Xeon® Scalable processors
  • 16+16 DIMM slots, up to 12TB 3DS ECC RDIMM/LRDIMM
  • 4x hot swap 3.5"/2.5" universal SATA/SAS/NVMe U.2 drive bays
  • 2x 2.5" internal OS HDD/SSD bays
  • 1x M.2
  • 800W/1200W 1+1 redundant power supply 80+ Platinum
  • AC Input : 100~240V, 50/60Hz, 7-3.5A
  • Dimensions: 31.5" (800mm) L x 17.24" (438mm) W x 1.71" (43.5mm) H
  • Weight: 20kg/44lbs
Applications:
  • Hyperscale cloud data center
  • AI Analytics
  • High performance computing

AIC 2U Server SB202-A6

  • Single socket 2U platform with 3rd Gen Intel® Xeon® Scalable processors
  • 16+16 DIMM slot, up to 12TB 3DS ECC RDIMM/LRDIMM
  • 12x hot swap 3.5"/2.5" universal SATA/SAS/NVMe U.2 drive bays
  • 2x 2.5" rear bays
  • 1x M.2
  • 1200W 1+1 redundant power supply 80+ Platinum
  • AC Input: 100~240V, 50/60Hz, 7-3.5A
  • Dimensions: 31.5" (800mm) L x 17.24" (438mm) W x 3.46" (88mm) H
  • Weight: 31kg/68.35lbs
Applications:
  • Hyperscale cloud data center
  • AI Analytics
  • High performance computing

AIC 2U Storage Server RSC-2MS

  • 2U high density platform with AMD EPYC 7002/7003 processor
  • 8 x DIMM slots, DDR4 2666/2400/2133 (L)RDIMM
  • 24x 3.5"/2.5" hot-swappable SATA/SAS drive bays
  • 2x 2.5" hot-swappable drive bays
  • Hot-swappable PWM cooling fans
  • Patented tool-less 3 tier access to drive bays
  • 800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
  • Dimensions: 33" (838mm) L x 17.24" (438mm) W x 3.46" (88mm) H
  • Weight: 31kg/68.35lbs
Applications:
  • Data center
  • Enterprise data storage
  • Surveillance

AIC 4U Storage Server SB407-TU

  • 4U high density platform with dual 3rd Gen Intel® Xeon® Scalable Processor
  • 16 x DIMM slots support 3200/2933/2666 MT/S
  • Top-load: 60x 3.5" hot swap SATA/SAS drive bays, rear: 8x 2.5" hot swap NVMe/SATA/SAS drive bays
  • 2x M.2
  • Standard: 800W 2+2 redundant PSU PMBus 1.2 80+ Platinum
  • Options:
  •   800W 2+2 redundant
  •   1200W 1+1 redundant
  •   1600W 1+1 redundant
  • Dimensions: 33.58" (853mm) L x 17.09" (434mm) W x 6.93" (176mm) H
  • Weight: 176kg/80lbs
Applications:
  • Media entertainment
  • Virtualization
  • Surveillance
  • Video analytics

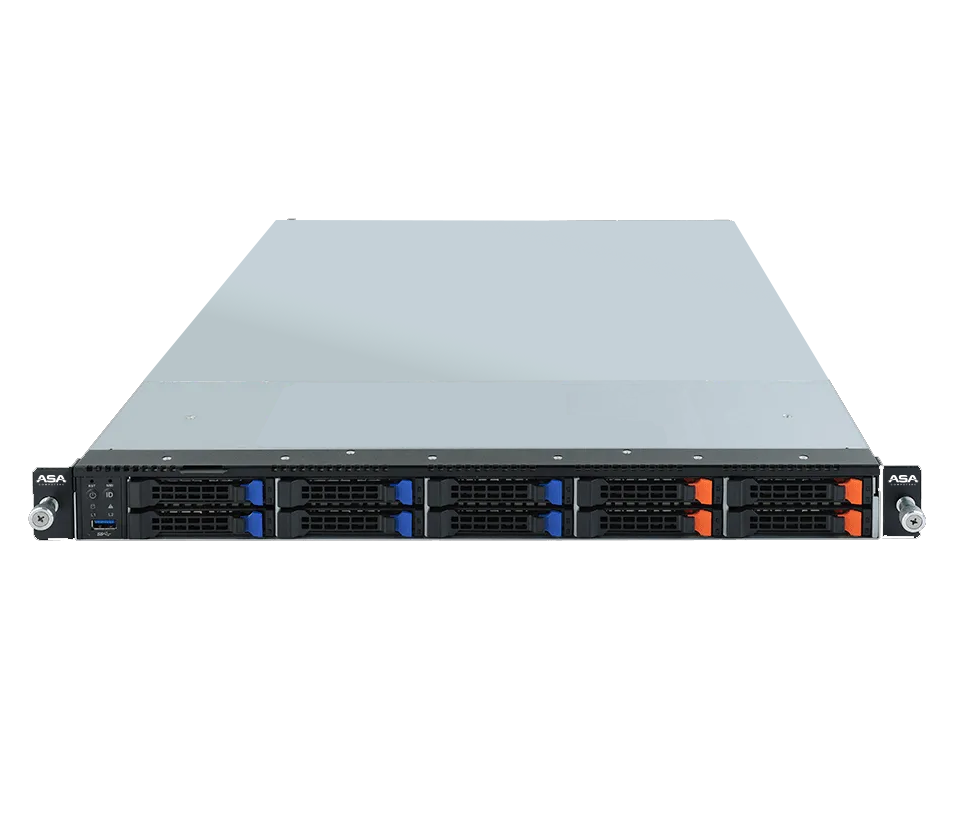

1U 10-Bay Ampere Altra Max ARM Server

  • 1U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128 cores) processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 6 x 2.5" SATA hot-swappable HDD/SSD bays
  • 4 x 2.5" NVMe hot-swappable HDD/SSD bays
  • 2 x M.2 with PCIe Gen4 x4 interface
  • 1 x PCIe Gen4 x16 expansion slot
  • 2 x 80 PLUS Platinum 650W power supply

1U 10-Bay Ampere Altra Max Enterprise ARM Server

  • 1U server
  • Single socket Ampere® Altra® ( up to 80 cores) or Ampere® Altra® Max (up to 128 cores) processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2x 10G SFP28 LAN ports
  • 1x Dedicated management port
  • 10x 2.5" NVMe hot-swappable drive bays
  • 1x Ultra-fast M.2 with PCIe Gen4 interface
  • 6x PCIe Gen4 x8 Slimline SAS connectors for NVMe or Riser
  • 1x PCIe Gen4 x4 expansion slot
  • 800W 80 PLUS Platinum redundant power supply

2U 4X GPU Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128 cores) processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • Up to 4 x NVIDIA® PCIe Gen4 GPU cards
  • 2 x 1Gb/s SFP28 LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x M.2 with PCIe Gen4 x4 interface
  • 4 x PCIe Gen4 x16 expansion slots for GPU cards (Internal)
  • 3 x PCIe Gen4 x8 low profile expansion slots in rear side
  • 2 x 80 PLUS Platinum 1600W (240V) power supply

2U 8-Bay Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128 cores) processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 8 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 6 x LP PCIe Gen4 x16 and x8 slots
  • 2 x 80 PLUS Platinum 800W (240V) power supply

2U 6-Bay Ampere Altra Max AI ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128 cores) processor
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 6 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x M.2 slots with PCIe Gen4 x4 interface
  • 6 x LP PCIe Gen4 x16 and x8 slots
  • 2 x 80 PLUS Platinum 800W (240V) power supply

2U 6-Bay Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128-cores) processor
  • 16 DIMMs DDR4-3200MHz RDIMM/LRDIMM ECC registered, up to 4TB support
  • 2x 10GbE LAN SFP28 ports via Mellanox CX4 controller
  • 2 PCI-E 4.0 x16 double wide GPU cards, 1 PCI-E 4.0 x16 LP slot, 1 AIOM slot (OCP3.0 Mezzanine Compatible)
  • 6x 2.5" U.2 NVMe hot-swap drive bays
  • 1600W Titanium level high-efficiency redundant power supply

2U 12-Bay Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128-cores) processor
  • 16 DIMMs DDR4-3200MHz RDIMM/LRDIMM ECC registered, up to 4TB support
  • 3 PCI-E 4.0 x16 (LP) slots, 1 AIOM slot (OCP3.0 Mezzanine Compatible)
  • 2x 10GbE LAN SFP28 ports via Mellanox CX4 controller
  • 12x 2.5" U.2 NVMe hot-swap drive bays
  • 750W Titanium level high-efficiency redundant power supply

2U 2x GPU Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128-cores) processor
  • 16 DIMMs DDR4-3200MHz RDIMM/LRDIMM ECC registered, up to 4TB support
  • Supports up to 2 PCI-E 4.0 x16 double wide GPU cards, 1 PCI-E 4.0 x16 LP slot, 1 AIOM slot (OCP3.0 Mezzanine Compatible)
  • 2x 10GbE LAN SFP28 ports via Mellanox CX4 controller
  • 12x 2.5" U.2 NVMe hot-swap drive bays
  • 1600W Titanium level high-efficiency redundant power supply

2U 16-Bay Ampere Altra Max ARM Server

  • 2U server
  • Single socket Ampere® Altra® (up to 80 cores) or Ampere® Altra® Max (up to 128-cores) processor
  • 16 DIMMs DDR4-3200MHz RDIMM/LRDIMM ECC registered, up to 4TB support
  • Supports up to 4 PCI-E 4.0 x16 double wide GPU cards, 1 PCI-E 4.0 x16 LP slot, 1 AIOM slot (OCP3.0 Mezzanine Compatible)
  • 2x 10GbE LAN SFP28 ports via Mellanox CX4 controller
  • 16x 2.5" U.2 NVMe hot-swap drive bays (Optional: 24x)
  • 2000W Titanium level high-efficiency redundant power supply

Dell Poweredge R450 Server

  • 1U server
  • Supports two 3rd Gen Intel® Xeon® Scalable processors
  • 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s
  • Drives:
    • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
    • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB
  • Power Supply:
    • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
    • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
    • 1100W -48Vdc hot swap redundant (only works with -48Vdc to -60Vdc power input)
  • Dimensions:
    • 482 mm (18.97 inches) w
    • 734.95 mm (28.92 inches w/o bezel) d
    • 42.8 mm (1.7 inches) h
Applications:
  • Density optimized general purpose IT server
  • Light virtualization

Dell Poweredge R650 Server

  • 1U server
  • Supports two 3rd Gen Intel® Xeon® Scalable processors
  • Memory:
    • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
    • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 12 TB max
    • Supports registered ECC DDR4 DIMMs only
  • Supports up to three 75 W single-width GPUs
  • Optional Direct Liquid Cooling to support increasing power and thermal requirements
  • Power Supply:
    • 800 W Platinum AC/240 V Mixed Mode
    • 1100 W Titanium AC/240 V Mixed Mode
    • 1400 W Platinum AC/240 V Mixed Mode
    • 1100 W DC -48 - 60 V, hot plug power supplies with full redundancy option
  • Dimensions:
    • 482 mm (18.97 inches) w
    • 809 mm (31.85 inches w/o bezel) d
    • 42.8 mm (1.7 inches) h
Applications:
  • Mixed workloads
  • Data center standardization
  • High-density virtualization

Dell Poweredge R750 Server

  • 2U server
  • Supports two 3rd Gen Intel® Xeon® Scalable processors
  • Memory:
    • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
    • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
    • Supports registered ECC DDR4 DIMMs only
  • Front bays:
    • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
    • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
    • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
    • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB
  • Rear bays:
    • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
    • up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Power Supply:
    • 700 W Titanium HLAC/240 mixed mode
    • 800 W Platinum AC/240 mixed mode
    • 1100 W Titanium AC/240 mixed mode
    • 1100 W DC -48 - -60 V
    • 1400 W Platinum AC/240 mixed mode
    • 1800 W Titanium HLAC/240 mixed mode
    • 2400 W Platinum AC/240 mixed mode
    • 2800 W Titanium HLAC/240 mixed mode
  • Dimensions:
    • 482 mm (18.97 inches) w
    • 758.3 mm (29.85 inches w/o bezel) d
    • 86.8 mm (3.41 inches) h
Applications:
  • Database and Analytics
  • Virtual Desktop Infrastructure
  • AI/ML and HPC

Dell Poweredge R760 Server

  • 2U server
  • Supports two 4th Gen Intel® Xeon® Scalable processors
  • Memory:
    • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
    • Supports registered ECC DDR5 DIMMs only
  • Front bays:
    • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
    • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
    • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
    • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
  • Rear bays:
    • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
    • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Power Supply:
    • 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
    • 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
    • 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
    • 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
    • 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
    • 1100 W LVDC -48 - -60 VDC, hot swap redundant
    • 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
    • 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
  • Dimensions:
    • 482 mm (18.97 inches) w
    • 758.3 mm (29.85 inches w/o bezel) d
    • 86.8 mm (3.41 inches) h
Applications:
  • Mixed Workload Standardization
  • Database and Analytics
  • Virtual Desktop Infrastructure

Dell Poweredge XE9640 GPU Server

  • 2U server
  • Supports two 4th Gen Intel® Xeon® Scalable processors
  • 4 NVIDIA® H100® SXM 700W NVLINK GPUs, fully interconnected with NVIDIA NVLink technology or 4 Intel® Data Center Max 1550 OAM 600W with Xe Link
  • Memory:
    • 8 DIMMS, 16 DIMMs and 32 DIMMs for XE9640 NVIDIA® GPU supported systems. RDIMM max 2TB
    • Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor) for XE9640 Intel GPU supported systems. RDIMM max 1TB.
  • PCIe:
    • 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)
  • Front Bays:
    • Up to 4 x 2.5-inch NVMe SSD drives, 61.44 TB max
  • Cooling Options:
    • Liquid Cooling with internal Manifold for GPUs and processors
    • Four sets (dual fan module) High performance (HPR) gold grade fans for Processors. All are hot swap fans
  • Power Supply:
    • 2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap
  • Dimensions:
    • 482 mm (18.97 inches) w
    • 912.8 mm (35.93) inches (w/o bezel) d
    • 86.8 mm (3.41 inches) h
Applications:
  • DL Training
  • Scientific Research
  • Data Analytics

Intel® 1U Server M50FCP1UR204

  • Integrated 1U system featuring an Intel® Server Board M50FCP2SBSTD
  • Supports two 4th Gen Intel® Xeon® Scalable processors
  • 4x 2.5" hot-swappable SSDs (optional 12-drive model available)
  • 2x M.2
  • Up to 32 x DDR5 RDIMMs, supports max. 12TB memory size
  • Supports PCIe 5.0
  • 1600W power supply
  • Dimensions: 30.2" (767mm) L x 17.24" (438mm) W x 1.69" (43mm) H
Applications:
  • Data-intensive workloads
  • Cloud
  • AI
  • Data analytics
  • Networking/5G
  • Storage

Intel® 1U Server M50CYP1UR212

  • Integrated 1U system featuring Intel® Server Board M50CYP2SB1US
  • Supports two 3rd Generation Intel® Xeon® Scalable processors
  • Up to 12 x 2.5" SSDs with air cooling
  • Up to 32 DIMMs, supports max. 12TB memory size
  • 2100W power supply
  • Dimensions: 30.75" (781mm) L x 17.24" (438mm) W x 1.69" (43mm) H
Applications:
  • HPC/Data center
  • Cloud computing
  • Enterprise IT

Intel® 2U Server M50FCP2UR208

  • Integrated 2U system featuring an Intel® Server Board M50FCP2SBSTD
  • Supports two 4th Gen Intel® Xeon® Scalable processors
  • 8x 2.5" SSDs (optional 12, 16, 24-drive models available or 12 x 3.5" HDDs)
  • 2x 2.5" internal SSDs
  • 2x M.2
  • Up to 32 x DDR5 RDIMMs, supports max. 12TB memory size
  • 2100W power supply
  • Dimensions: 30.32" (770mm) L x 17.24" (438mm) W x 3.43" (87mm) H
Applications:
  • Data-intensive workloads
  • Cloud
  • AI
  • Data analytics
  • Networking/5G
  • Storage

Intel® 1U Half-Width Compute Module D50DNP1MHCPAC

  • 1U half-width air cooled compute module with Intel® Server Board D50DNP1SB for 2U front IO chassis with 4-node
  • Supports 4th Gen Intel® Xeon® Scalable processors or Intel® Xeon® CPU Max Series
  • 2x M.2
  • Supports DDR5 memory
  • Supports two low profile PCIe 5.0 cards
  • High velocity air cooling/D2C (Direct to Chip) cold plates and chassis manifolds
  • Dimensions: 23.28" (591.4mm) L x 8.5" (216mm) W x 1.6" (40.6mm) H
Applications:
  • Accelerated HPC & AI workloads
  • Cloud
  • AI
  • Data analytics
  • Networking/5G
  • Storage

Intel® 2U Half-Width Management Module D50DNP2MHSVAC

  • 2U half-width management module with Intel® Server Board D50DNP1SB for 2U front IO chassis
  • Supports 4th Gen Intel® Xeon® Scalable processors or Intel® Xeon® CPU Max Series
  • 2x U.2 2.5" NVMe SSDs
  • 2x M.2
  • Supports DDR5 memory
  • Supports four low profile PCIe 5.0 cards
  • High velocity air cooling
  • Dimensions: 23.28" (591.4mm) L x 8.5" (216mm) W x 3.22" (81.9mm) H
Applications:
  • Accelerated HPC & AI workloads
  • Cloud
  • AI
  • Data analytics
  • Networking/5G
  • Storage

Intel® 2U Server Full-Width Acceleration Module D50DNP2MFALAC

  • 2U full-width PCIe/Accelerator module with Intel® Server Board D50DNP1SB for 2U front IO chassis
  • Supports 4th Gen Intel® Xeon® Scalable processors or Intel® Xeon® CPU Max Series
  • 2x M.2
  • Supports DDR5 memory
  • Supports four full-height, full-length, double-width PCIe 5.0 add-in cards
  • High velocity air cooling/D2C (Direct to Chip) cold plates and chassis manifolds
  • Dimensions: 23.28" (591.4mm) L x 17.21" (437.1mm) W x 3.23" (82.1mm) H
Applications:
  • Accelerated HPC & AI workloads
  • Cloud
  • AI
  • Data analytics
  • Networking/5G
  • Storage

Intel® 2U Server M50CYP2UR208

  • Integrated 2U Intel system featuring Intel Server Board M50CYP2SBSTD
  • Supports two 3rd Gen Intel® Xeon® Scalable processors
  • Up to 24 x 2.5" SSDs with air cooling
  • Up to 32 DIMMs, supports max. 12TB memory size
  • Designed for all your mainstream needs, including collaboration, storage, database, web server
  • 2100W power supply
  • Dimensions: 30.32" (770mm) L x 17.56" (446mm) W x 3.43" (87mm) H
Applications:
  • Database
  • Hyperconverged Infrastructure (HCI)
  • Business Intelligence

Supermicro 1U SuperServer SYS-121H-TN10R

  • Dual socket 1U platform with 4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays;optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays;2x internal M.2 NVMe/SATA drive slots
  • 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
  • 8 heavy duty hot-swap fans with optimal fan speed control
  • 800W/1200W Redundant Titanium CRPS w/PMBus power supply
  • Dimensions: 29.41" (747mm) L x 17.2" (437mm) W x 1.7" (43mm) H
  • Weight: 22.2kg/49lbs
Applications:
  • AI inference / ML
  • Cloud computing
  • Virtualization

Supermicro 1U SuperServer SYS-121C-TN10R

  • Dual socket 1U platform with 4th Gen Intel® Xeon® Scalable processors
  • 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
  • 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x16 AIOM (OCP 3.0); 2 PCIe 5.0 x4 NVMe M.2
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
  • Dimensions: 23.5" (597mm) L x 17.2" (437mm) W x 1.7" (43mm) H
  • Net Weight: 11.3kg/25lbs
  • Gross Weight: 18.1kg/40lbs
Applications:
  • Data center optimized
  • Web server
  • Cloud computing
  • DNS & gateway

Supermicro 1U A+ Server AS-1015CS-TNR

  • Single socket 1U platform with up to 96 cores of AMD EPYC™ 9004 Series processors
  • 12 DIMM slots w/ up to 3TB 3DS ECC RDIMM DDR5-4800MHz
  • 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 2 PCIe 5.0 x16 FHHL
  • 2 On-board PCIe 3.0 x2 M.2 NVMe 80mm/110mm (Boot)
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
  • Dimensions: 25.6" (650mm) L x 17.2" (437mm) W x 1.7" (43mm) H
  • Net Weight: 11.3kg/25lbs
  • Gross Weight: 20.9kg/46lbs
Applications:
  • Data center optimized
  • Web server
  • Cloud computing
  • DNS & gateway

Supermicro 2U SuperServer SYS-621P-TR

  • Dual socket 2U platform with 4th Gen Intel® Xeon® Scalable processors
  • 16 DIMM slots, up to 4TB DDR5-4800MHz ECC Registered RDIMM
  • 8x 3.5" hot-swap SATA3 drive bays (optional to convert to SAS drive bays)
  • 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  • 1200W redundant titanium level power supplies
  • Dimensions: 25.5" (647mm) L x 17.2" (437mm) W x 3.5" (89mm) H
  • Net Weight: 16.5kg/36.38lbs
  • Gross Weight: 31.2kg/69lbs
Applications:
  • Compute
  • Virtualization

Supermicro 2U SuperServer SYS-221H-TN24R

  • Dual socket 2U platform with 4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots; optional RAID support via storage add-on card
  • 4 heavy duty hot-swap fans with optimal fan speed control
  • 1600W 1U redundant power supply
  • Dimensions: 29.9" (760mm) L x 17.2" (437mm) W x 3.5" (88.9mm) H
  • Net Weight: 18.2kg/40lbs
  • Gross Weight: 30kg/66lbs
Applications:
  • AI inference / ML
  • Cloud computing
  • Virtualization

Supermicro 2U A+ Server AS-2125HS-TNR

  • Dual socket 2U platform with 4th Gen AMD EPYC™ 9004 Series processors
  • 24 DIMM slots, DDR5-4800 memory support up to 6 TB
  • 24 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  • 1 AIOM/OCP NIC 3.0 Slot with configuration Options for up to 4 PCIe 5.0 x16 Slots OR up to 8 PCIe 5.0 x8 Slots
  • 1600W redundant titanium level power supplies
  • Dimensions: 29.9" (760mm) L x 17.2" (437mm) W x 3.5" (88.9mm) H
  • Net Weight: 17.7kg/39lbs
  • Gross Weight: 32.7kg/72lbs
Applications:
  • AI inference / ML
  • Cloud computing
  • Virtualization

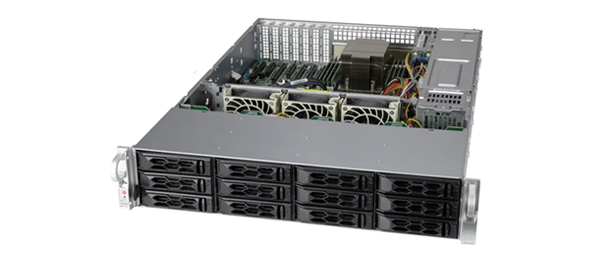

Supermicro 2U A+ Server AS-2014S-TR

  • Single socket 2U platform with AMD EPYC™ 7002/7003 Series Processor
  • 8 DIMM slots, up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 12x hot-swap 3.5" SATA3 drive bays, 2x rear hot-swap 2.5" SATA3 drive bays via optional kit
  • 2x M.2
  • 5 PCle 4.0 x16 LP slots, 2 PCle 4.0 x8 LP slots
  • 920W Redundant Platinum Level Power Supplies
  • Dimensions: 25.5" (648mm) L x 17.2" (437mm) W x 3.5" (88.9mm) H
  • Net Weight: 15.2kg/33.5lbs
  • Gross Weight: 27.2kg/60lbs
Applications:
  • Backup storage
  • Web or Database Servers
  • Compact Network Appliance

Supermicro 2U SuperServer SYS-220P-C9R

  • Dual sockets 2U platform with 3rd Gen Intel® Xeon® Scalable processors
  • 6 DIMM slots, up to 4TB: PMem and DRAM; 3200MHz ECC LRDIMM/RDIMM DDR4
  • 16x 2.5" hot-swap drive bays, 8x SAS drive bays, 8 SATA drives
  • 1x M.2
  • 3 heavy duty hot-swappable 13.5K RPM middle cooling fans with optimal fan speed control
  • 1200W/1000W Titanium Power Supply W/PMbus
  • Dimensions: 24.8" (630mm) L x 17.2" (437mm) W x 3.5" (89mm) H
  • Net Weight: 17.4kg/38lbs
  • Gross Weight: 28.8kg/63lbs
Applications:
  • High Performance Computing
  • Enterprise Server
  • Data Center

Supermicro 2U Big Twin SuperServer SYS-220BT-HNTR

Four hot-pluggable nodes, each node supports:
  • Dual socket with 3rd Gen Intel® Xeon® Scalable processors
  • 16 DIMM slots (16 DRAM + 4 PMem), up to 4TB: 16x 256 GB DRAM; up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem; 3200MHz ECC DDR4 RDIMM
  • 6x hot-swap 2.5" drive bays; 6 PCIe 4.0 NVMe/SATA 2.5" drives
  • 2600W Redundant Titanium PWS
  • Dimensions: 28.75" (730mm) L x 17.68" (449mm) W x 3.47" (88mm) H
  • Net Weight: 24.7kg/54.5lbs
  • Gross Weight: 38.6kg/85lbs
Applications:
  • All-Flash NVMe Hyperconverged Infrastructure
  • Container-as-a-Service; Application Accelerator
  • High-Performance File System
  • Diskless HPC Clusters

Supermicro 4U A+ Server AS-4125GS-TNRT

  • Dual socket 4U platform with 4th Gen AMD EPYC™ 9004 Series processors
  • Flexible GPU support: active & passive GPUs, up to 8 direct attached double width, full length GPUs
  • 24 DIMM Slots, up to 6TB DDR5 memory
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated)
  • 1x M.2 NVMe OR 1x M.2 SATA3
  • 2000W 1U redundant power supply
  • Dimensions: 29" (737mm) L x 17.2" (437mm) W x 7" (178mm) H
  • Net Weight: 24.7kg/54.5lbs
  • Gross Weight: 38.6kg/85lbs
Applications:
  • AI / deep learning
  • HPC

Supermicro 4U GPU Server SYS-421GE-TNRT

  • Dual Intel® 4th Gen Xeon® Scalable processors LGA-4677
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive
    2 x M.2 NVMe
  • 12 PCIe 5.0 x16 LP slot(s)
    1 PCIe 5.0 X16 slot(s)
  • 4 x HGX H100 SXM5
  • Power Supply: 4x 3000W Redundant Power Supplies, Titanium Level
Applications:
  • High Performance Computing
  • AI/Deep Learning Training

Supermicro 8U GPU A+ Server AS-8125GS-TNHR

  • Dual AMD EPYC™ 9004 series Processors
  • 24 DIMM slots Up to 6TB: 24x 256 GB DRAM
  • 12 x 2.5" hot-swap NVMe drive bays
    2 x 2.5" hot-swap SATA
    1 x M.2 NVMe for boot drive
  • 8 PCIe 5.0 x16 LP slot(s)
    2 PCIe 5.0 x16 FHFL slot(s)
  • 8x NVIDIA® HGX™ H100 - SXM5 GPUs - 640GB HBM3
  • Power Supply: 4x 3000W Redundant Power Supplies, Titanium Level
Applications:
  • High Performance Computing
  • AI/Deep Learning Training

We are here to help!

Whether you have questions for a specific product or our rack integration services, Racklive team can help!
