Ultrastar Data60

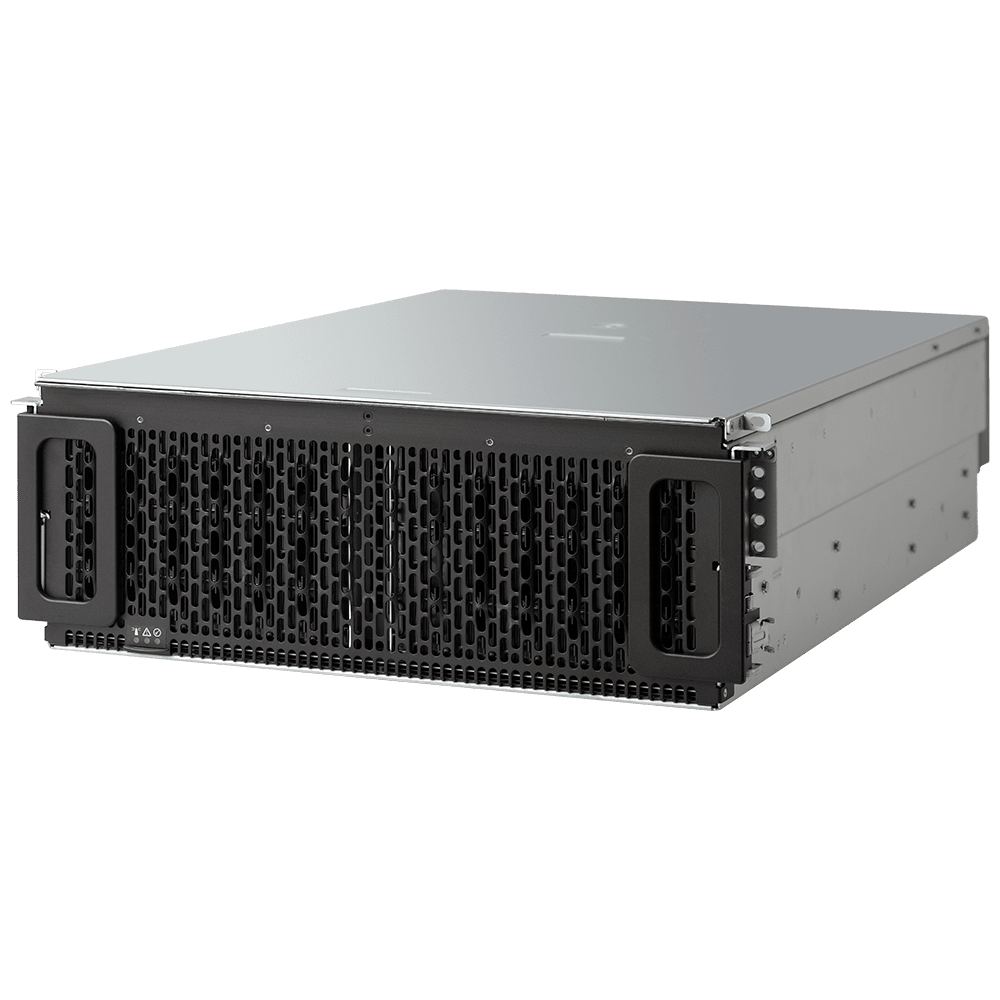

Ultrastar Data60 Hybrid Storage Platform

  • High Density - Up to 1.08PB raw capacity in a 4U enclosure
  • Flexible - Choice of SAS or SATA with option for a flash data acceleration tier
  • Innovative - IsoVibe and ArcticFlow for improved reliability, cooling, and TCO
  • FIPS & TAA compliant model available (please indicate in quote inquiry)


Ultrastar Data60

Designed for High Density and Flexibility

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.


Compatibility Matrix

Compatibility Matrix - Ultrastar® Data60


Max. Drives
60 x 3.5” drive bays
Up to 24 can be SAS or SATA SSD
Drive Interface
12 Gb/s SAS
6 Gb/s SATA
Available Drive Capacities
HDD up to 18TB
SSD up to 15.36TB
Host Interface
Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management
SCSI Enclosure Services
Redfish (out of band, via RJ45)
Physical Dimensions
Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 712mm (28.03”)
Depth in Rack: Max of 890mm (35.04”) w/ dual CMA—includes 2 SAS cables
Weight
Product without drives: 27.3kg (60lbs)
Product with 60 HDDs: 79.4kg (175lbs)
Power
Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz
Cooling
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 I/O module fan
Dual PSUs with built-in fans
LED Indicator
Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Serviceability

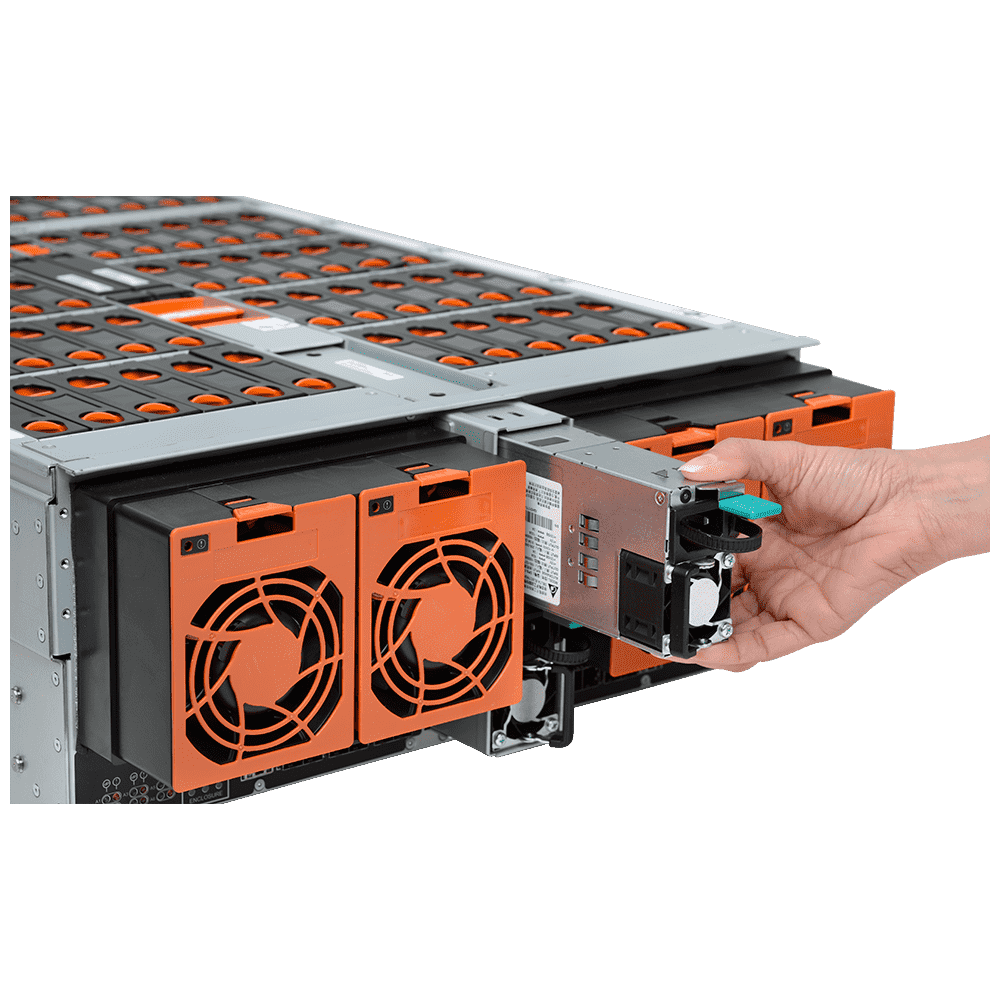

Cable-free hot-swappable IOM, power supply, fans, and drives
Environmental
Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C

Highlights

  • Up to 60 Ultrastar DC HC550 HDDS (SAS or SATA)
  • Up to 1.08PB1 raw capacity in 4U
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • FIPS & TAA Compliant Models Available
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure
