Ultrastar DC HC500 Series

  • High Capacity for Massive Data and Lower Total Cost of Ownership
  • Solves TCO Challenges
  • High Capacity – Up to 18TB HDDs, drop-in ready for Big Data workloads
  • Low Power – Up to 58% lower idle W/TB than 8TB Ultrastar air-filled drives
  • More Reliable – 25% higher MTBF rating than air-filled HDDs



Driving Up Capacity and Driving Down TCO for Cloud and Hyperscale Data Centers

The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard drives. Built using HelioSeal technology, the industry’s only fifth-generation helium platform, the DC HC500 series is designed for public and private cloud environments, where storage density, Watts/TB and $/TB are critical for creating the most cost-efficient infrastructure. HelioSeal technology is key to achieving higher drive capacities, greater reliability ratings and extreme power efficiency. The result is a lower Total Cost of Ownership (TCO) for our cloud and enterprise customers.





ultrastar-dc-hc550-left-western-digital

Extreme Capacity

18TB CMR HDD for hyperscale, cloud, and enterprise storage

Areal Density Leadership

Energy-Assisted Magnetic Recording technology, Triple State Actuator and 6th generation product with HelioSeal technology on a 9-disk platform

TCO

Cost-optimized configurations for every important capacity point

SATA
SAS
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
18TB / 16TB
18TB / 16TB
Format: Sector size (bytes)2
4Kn:

4096
4096, 4112, 4160, 4224
512e:

512
512, 520, 528
Performance
Data Buffer (MB)3
512
512
Rotational Speed (RPM)
7200
7200
Sustained Transfer Rate
(MiB/s, typical)

257/250
257/250
(MB/s, typical)4

269/262
269/262
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours, projected)5
2.5
2.5
Annualized Failure Rate (AFR, projected)
0.35%
0.35%
Load/Unload Cycles (at 40ºC)
600,000
600,000
Availability (hrs/day x days/week)
24x7
24x7
Limited Warranty (yrs)
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.0/3.6
2.0/3.6
Power
Requirement
+5 VDC, +12VDC
+5 VDC, +12VDC
Operating (W)6
6.5
8.8
Idle (W)7
5.6
5.8
Power consumption efficiency at Idle (Watts/TB)
0.31/0.35
0.32/0.36
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
690
690
Environmental (operating)
Ambient Temperature
5º to 60º C
5º to 60º C
Shock (half-sine wave, 2ms, G)
70
70
Vibration-Operating (G RMS, 5 to 500 Hz)
0.67 (XYZ)
—
Environmental (non-operating)
Ambient Temperature
-40º to 70º C
-40º to 70º C
Shock (half-sine wave, G)
250 (2 ms)/ 150 (11ms)
250 (2 ms)/ 150 (11ms)
Random Vibration (G RMS, 2 to 200 Hz)
1.04 (XYZ)
1.04 (XYZ)

Disclosures

1: One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes). Actual user capacity may be less due to operating environment.
2: Advanced Format drive: 4K (4096-byte) physical sectors.
3: Portion of buffer capacity used for drive firmware.
4: Based on internal testing; performance may vary depending on host environment, drive capacity and other factors. 1MiB = 1,048,576 bytes (220), 1MB = 1,000,000 bytes (106).
5: Projected values. Final MTBF and AFR specifications will be based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions, workload 220TB/year and temperature 40C. Derating of MTBF and AFR will occur above these parameters, up to 550TB writes per year and 60°C ambient (65°C device temp). MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
6: SATA models: Random RW 50/50 8KB QD=1, SAS models: Random RW 50/50 4KB QD=4.
7:Idle specification is based on use of Idle_A.



ultrastar-dc-hc530-left-western-digital

Highest Capacity

14TB CMR HDD, drop-in ready for capacity-optimized workloads

Lowest Power

58% lower idle Watts/TB than 8TB Ultrastar air-filled drives

More Reliable

Unbeaten MTBF rating for an HDD at 2.5M hours

SATA
SAS
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
14TB
14TB
Format2: Sector size(bytes)2
4Kn:

4096
4096, 4112, 4160, 4224
512e:

512
512, 520, 528
Performance
Data Buffer (MB)3
512
512
Rotational Speed (RPM)
7200
7200
Sustained Transfer Rate
(MiB/s, typical)

255
255
(MB/s, typical)4

267
267
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)6
2.5
2.5
Annualized Failure Rate (AFR)
0.35%
0.35%
Load/Unload Cycles (at 40ºC)
600,000
600,000
Availability (hrs/day x days/week)
24x7
24x7
Limited Warranty
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.0/3.6
2.0/3.6
Power
Requirement
+5 VDC, +12VDC
+5 VDC, +12VDC
Operating (W)7
6.0
8.5
Idle (W)8
5.5
5.9
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
690
690
Environmental (operating)
Ambient Temperature
5º to 60º C
5º to 60º C
Shock (half-sine wave, 2ms, G)
70
70
Vibration-Operating (G RMS, 5 to 500 Hz)
0.67 (XYZ)
—
Environmental (non-operating)
Ambient Temperature
-40º to 70º C
-40º to 70º C
Shock (half-sine wave, G)
300 (2 ms)/ 150 (11ms)
300 (2 ms)/ 150 (11ms)
Vibration-Operating (G RMS, 5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Advanced Format drive: 4K (4096-byte) physical sectors.
3: Portion of buffer capacity used for drive firmware.
6: MTBF and AFR targets are based on a sample population and are estimated by statistical measurements and acceleration algorithms under median operating conditions. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
7: SATA models: 8K Queue Depth = 1 @ 40 IOPS, SAS models: 4K Queue Depth = 4 @ Max IOPS.
8: Idle specification is based on use of Idle_A.

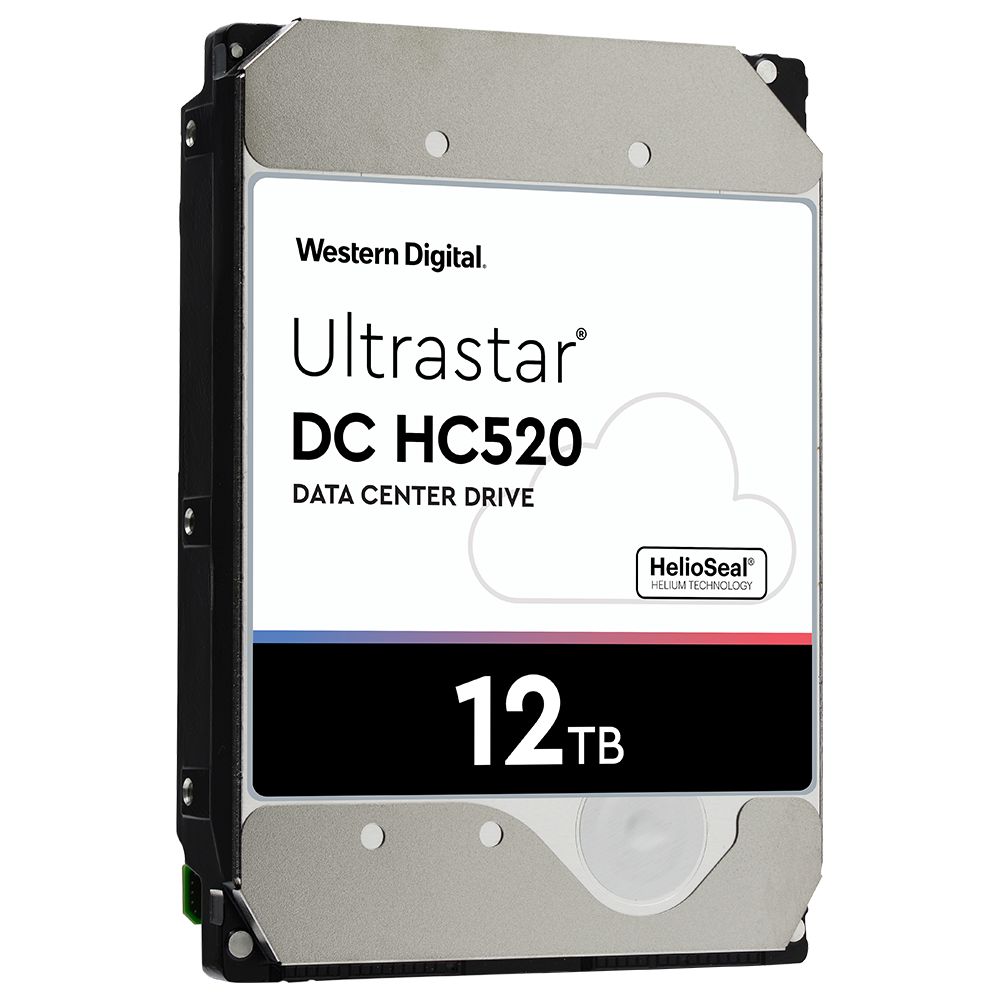

ultrastar-dc-hc520-left-western-digital

Higher Capacity

12TB CMR HDD, drop-in ready for capacity-optimized workloads

Lower Power

52% lower idle Watts/TB than 8TB Ultrastar air-filled drives

More Reliable

Unbeaten MTBF rating for an HDD at 2.5M hours

SATA
SAS
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
12TB
12TB
Format2: Sector size(bytes)2
4Kn:

4096
4096, 4112, 4160, 4224
512e:

512
512, 520, 528
Performance
Data Buffer (MB)3
256
256
Rotational Speed (RPM)
7200
7200
Interface transfer rate (MB/s, max)
600
1200
Sustained Transfer Rate
(MiB/s, typical)

243
243
(MB/s, typical)4

255
255
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)6
2.5
2.5
Annualized Failure Rate (AFR)
0.35%
0.35%
Load/Unload Cycles (at 40ºC)
600,000
600,000
Availability (hrs/day x days/week)
24x7
24x7
Limited Warranty
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.0/3.6
2.0/3.6
Power
Requirement
+5 VDC, +12VDC
+5 VDC, +12VDC
Operating (W)7
6.9
10.1
Idle (W)8
5.0
6.1
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
660
660
Environmental (operating)
Ambient Temperature
5º to 60º C
5º to 60º C
Shock (half-sine wave, 2ms, G)
70
70
Vibration-Operating (G RMS, 5 to 500 Hz)
0.67 (XYZ)
—
Environmental (non-operating)
Ambient Temperature
-40º to 70º C
-40º to 70º C
Shock (half-sine wave, G)
300 (2 ms)/ 150 (11ms)
300 (2 ms)/ 150 (11ms)
Vibration-Operating (G RMS, 5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Advanced Format drive: 4K (4096-byte) physical sectors.
3: Portion of buffer capacity used for drive firmware.
6: MTBF and AFR targets are based on a sample population and are estimated by statistical measurements and acceleration algorithms under median operating conditions. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
7: SATA models: 8K Queue Depth = 1 @ 40 IOPS, SAS models: 4K Queue Depth = 4 @ Max IOPS.
8: Idle specification is based on use of Idle_A.

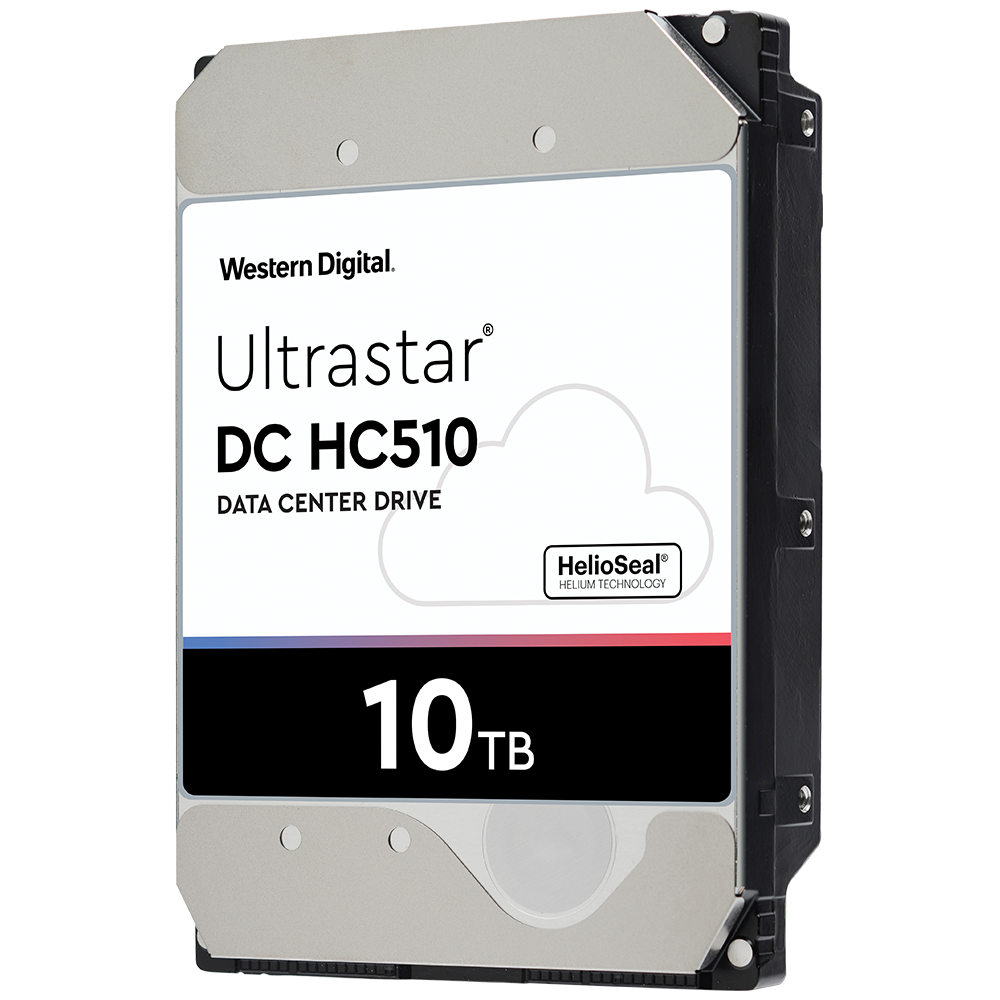

ultrastar-dc-hc510-left-western-digital

High Capacity

10TB & 8TB CMR HDD, drop-in ready for capacity-optimized workloads

Low Power

Up to 43% lower idle Watts/TB than 8TB Ultrastar air-filled drives

More Reliable

Unbeaten MTBF rating for an HDD at 2.5M hours

SATA
SAS
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
10TB / 8TB
10TB / 8TB
Format2: Sector size(bytes)2
4Kn:

4096
4096, 4112, 4160, 4224
512e:

512
512, 520, 528
Performance
Data Buffer (MB)3
256
256
Rotational Speed (RPM)
7200
7200
Interface transfer rate (MB/s, max)
600
1200
Sustained Transfer Rate
(MiB/s, typical)

237 / 215
237 / 215
(MB/s, typical)

249 / 225
249 / 225
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)6
2.5
2.5
Annualized Failure Rate (AFR)
0.35%
0.35%
Load/Unload Cycles (at 40ºC)
600,000
600,000
Availability (hrs/day x days/week)
24x7
24x7
Limited Warranty
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.0/3.6
2.0/3.6
Power
Requirement
+5 VDC, +12VDC
+5 VDC, +12VDC
Operating (W)
6.8
9.5
Idle (W)8
5.0
5.8
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
660
660
Environmental (operating)
Ambient Temperature
5º to 60º C
5º to 60º C
Shock (half-sine wave, 2ms, G)
70
70
Vibration-Operating (G RMS, 5 to 500 Hz)
0.67 (XYZ)
0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature
-40º to 70º C
-40º to 70º C
Shock (half-sine wave, G)
300 (2 ms)/ 150 (11ms)
300 (2 ms)/ 150 (11ms)
Vibration-Operating (G RMS, 5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Advanced Format drive: 4K (4096-byte) physical sectors.
3: Portion of buffer capacity used for drive firmware.
6: MTBF and AFR targets are based on a sample population and are estimated by statistical measurements and acceleration algorithms under median operating conditions. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
7: SATA models: 8K Queue Depth = 1 @ 40 IOPS, SAS models: 4K Queue Depth = 4 @ Max IOPS.
8: Idle specification is based on use of Idle_A.



Highlights

  • Up to 18TB capacity in a standard 3.5-inch form factor
  • Conventional Magnetic Recording (CMR) technology works seamlessly in capacity enterprise environments
  • Reliable, field-proven design across five generations
  • HelioSeal design delivers power efficiency (Watts/TB)
  • 2.5M hours MTBF rating and a 5-year limited warranty

Applications and Workload

  • Cloud & Hyperscale Storage
  • Massive Scale-Out (MSO), high-density data centers
  • Distributed File Systems
  • Bulk storage using Object storage solutions like Ceph™ and OpenStack Swift
  • Primary and secondary storage for Apache Hadoop® for Big Data Analytics
  • Surveillance Analytics
