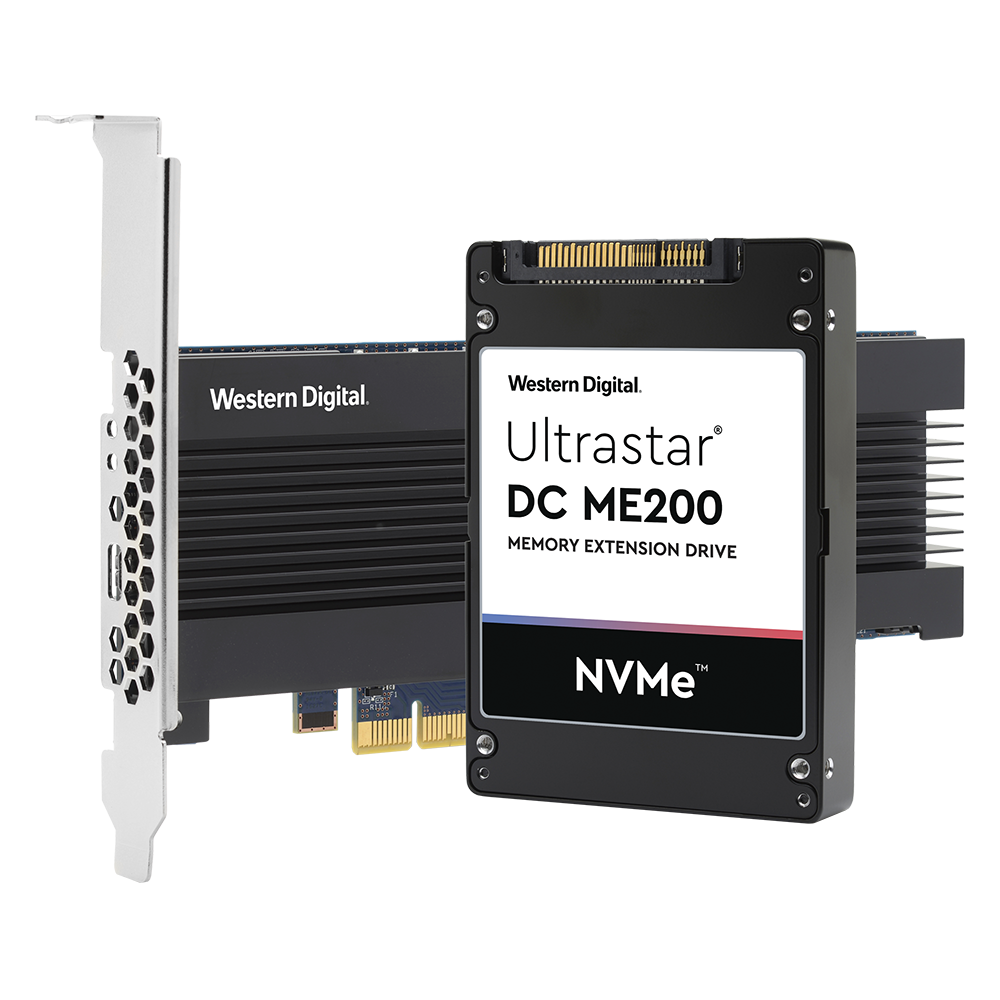

Ultrastar DC ME200 Memory Extension Drive

  • Scale In-Memory Computing Infrastructure at a Better Total Cost of Ownership
  • Scale In-Memory Computing
  • Scalibility – Scale DRAM Pools with no modifications to OS or applications
  • Reliability – Data Center class for critical applications
  • High Performance – Near-DRAM performance



Better TCO for In-Memory Computing Infrastructure with Ultrastar Memory Drive

In-memory computing is used for real-time data processing, application caching, large-scale databases, and acceleration for the data-driven economy. Cloud service providers and IT administrators faced mounting CAPEX and OPEX overhead when deploying in-memory architectures to achieve scalable hardware configurations. To help reduce CAPEX and OPEX for in-memory infrastructure, Ultrastar memory drive increases application memory by creating virtualized memory pools. Ultrastar memory drive scales up to 24TiB in a 1U server for use as virtualized memory without significant loss in application performance. The solution is transparent, requiring no changes to the existing operating systems or applications for near-DRAM performance.

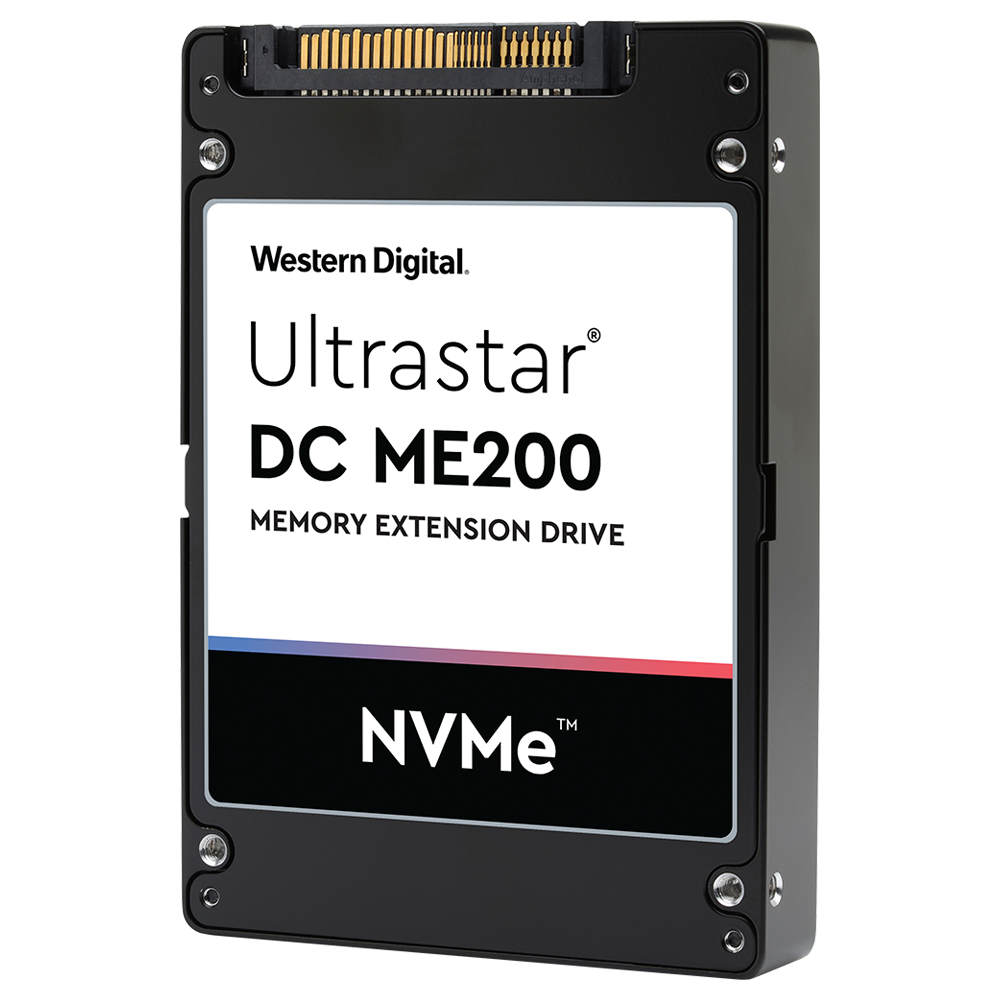

U.2 2.5-Inch Drive

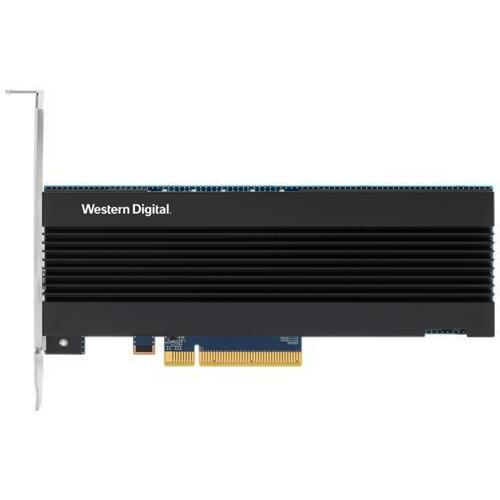

HH-HL Add-in Card
General
Interface
NVMe 1.2 PCIe Gen3
NVMe 1.2 PCIe Gen3
Form Factor
U.2, 15mm
AIC, HH-HL
Software-Defined Memory Capacity1
1024 GiB, 2048 GiB, 4096 GiB
1024 GiB, 2048 GiB, 4096 GiB
Memory Storage Type
Volatile, non-persistent
Volatile, non-persistent
Included Software
Memory Technology (MET)
Memory Technology (MET)
Recommended Expansion2
Memory Technology (MET)
Memory Technology (MET)
Reliability
Endurance (PBW)3
1 TiB model: 19.1
2 TiB model: 38.2
4 TiB model: 78
1 TiB model: 19.1
2 TiB model: 38.2
4 TiB model: 78
Limited Warranty4
5 years
5 years
Power
Requirement (DC, +/- 5%)
3.3V (aux) & 12V
3.3V (aux) & 12V
Operating (W, typical)
25W
25W
Operating Power (W, idle)
9W
9W
Physical Size
Z-Height (mm)
15
14.49
Dimensions (width x depth, mm)
100.45 x 69.85
167.65 x 68.9
Environmental
Operating Temperature
0° to 70°C (Ambient)
0° to 55°C (Ambient)

Disclosures

1: Memory capacity is indicated by GiB and TiB and based on binary values such that one gibibyte (GiB) is equal to 230 bytes and one tebibyte (TiB) is equal to 1024 GiB (240) bytes. Storage capacity and endurance is indicated by TB and PB where one PB equals is 1015 bytes. Accessible capacity can vary from stated capacity due to software, formatting, and other factors.
2: Suggested expansion of 8x DRAM based on internal performance testing across a variety of industry standard benchmarks.
3: Endurance rating based on 4KiB random write workload.
4: The warranty for the product will expire on the earlier of (i) the date when the flash media has reached one percent (1%) of its remaining life or (ii) the expiration of the time period associated with the product.



Highlights

  • Ideal for RedisTM and Memcached
  • No need to modify application stacks or Linux
  • Ability to scale to large memory pool sizes
  • Reduce node count by consolidating with Ultrastar DC ME200
  • NVMeTM U.2 or AIC HH-HL form factors

Applications and Workload

  • Real-Time Analytics
  • Web-scale caching
  • High Performance Computing (HPC)
  • Genomics
  • Cloud Services
  • Hosting Providers
  • Telcos
  • Software-as-a-Service (SaaS)
  • IoT Time Series Analysis
