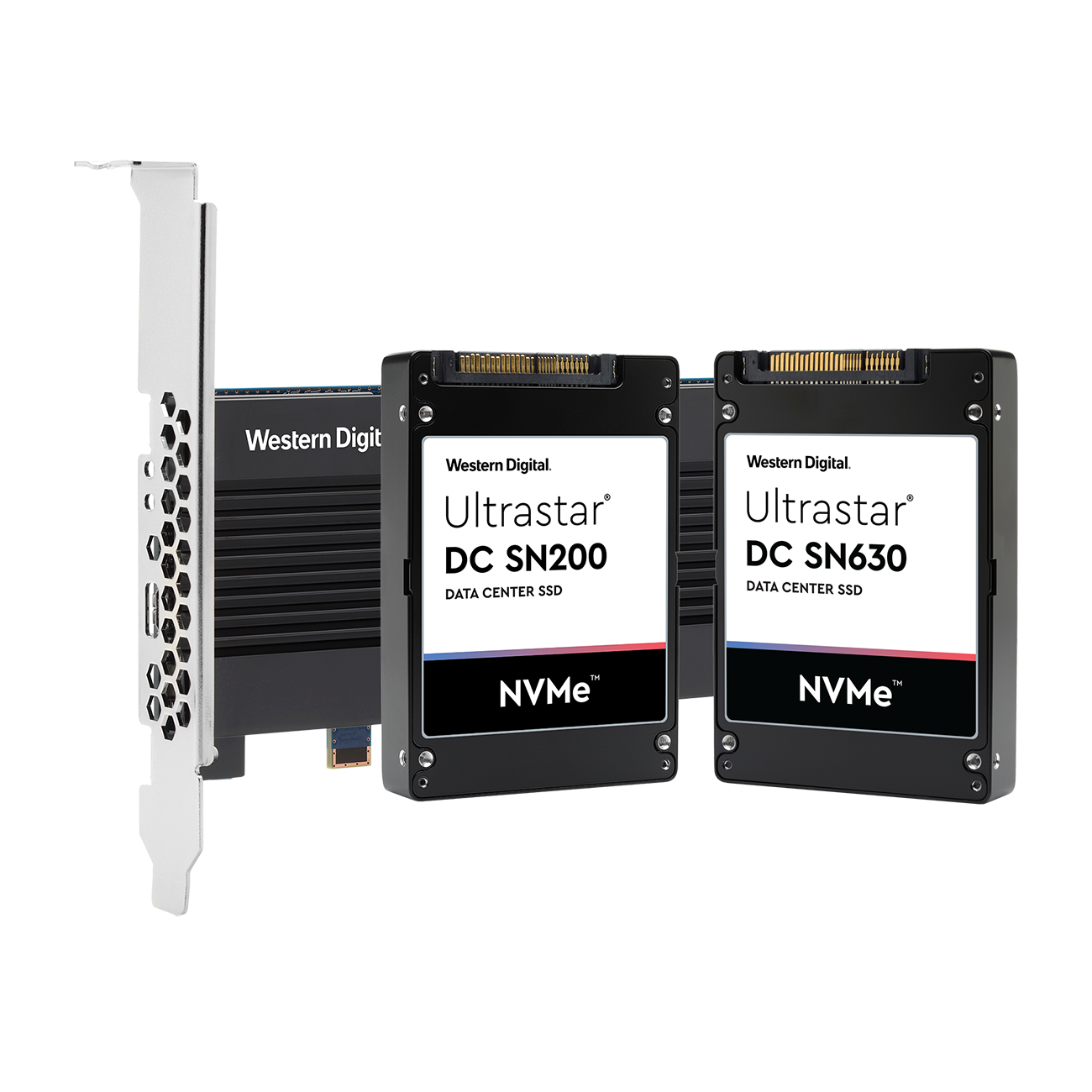

Ultrastar NVMe Series

  • Low Latency and Maximum Throughput for High-Transaction Workloads
  • Accelerate Access to Critical Data

  • Maximum Throughput – Up to 1.2M read IOPS to help power through demanding workloads
  • Low Latency – Predictable throughput for high-transaction workloads
  • Design Flexibility – Choice of form factors to support range of data centers requirements



Accelerate Access to Critical Data for Data-Intensive Workloads and Applications

Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence & access to critical data, these SSDs meet the growing digital demands of your business applications. Ultrastar DC SN200 delivers extreme performance & ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels & helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN640 & DC SN630, offer low latency & higher bandwidth for a seamless transition away from SATA SSDs in mixed-use & read-intensive applications. This high throughput & low latency delivers high performance for deeper insights & faster results for today’s data intensive applications. Ultrastar DC SN340 provides a power efficient cost-optimized solution for very read⁠-⁠intensive applications & warm storage.

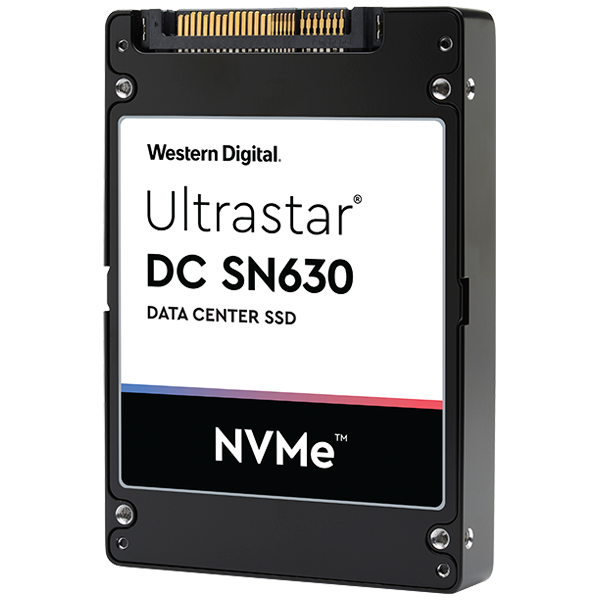

Ultrastar-DC-SN630-NVMe-U.2-standingL-connector-CLEAN-HR

Outstanding Performance

Up to 2x the random read IOPS of the previous generation NVMe with the power of BiCS3, 3D NAND

High Capacity

Available up to 7.68TB per drive, allowing for larger storage per server than the previous generation

Quality of Service

Delivers its performance with a high quality of service, minimizing outliers and making it easier to meet demanding SLAs

960GB/800GB
1,920GB/1,600GB
3,840GB/3,200GB
7,680GB/6,400GB
General
Interface
PCIe Gen 3.1 x4 (Compliant to NVMe™ 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe™ 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe™ 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe™ 1.3)
Form Factor
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
Capacity1
960GB/800GB
1,920GB/1,600GB
3,840GB/3,200GB
7,680GB/6,400GB
Endurance (Drive writes per day, DW/D)2
0.8/2
0.8/2
0.8/2
0.8/2
Flash Memory Technology
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
Performance3 (Specified at 10.75W Average)
Sequential Read, (max MiB/s, 128KiB BS, QD128)
2,690/2,690
2,660/2,670
2,510/2,500
2,520/2,540
Sequential Write, (max MiB/s, 128KiB BS, QD128)
930/960
1,230/1,240
1,180/1,200
1,240/1,240
Random Read (max IOPS, 4KiB BS, QD128)
278,760/281,790
358,220/356,870
332,420/332,510
360,280/306,520
Random Write (max IOPS, 4KiB BS, QD128)
43,580/86,740
53,850/86,870
55,000/88,140
54,220/88,210
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
107,350/188,480
170,390/253,390
163,350/238,500
170,250/273,960
Latency Distribution (Specified at 10.75W Average)
Random Read Latency (4KiB BS, QD1, 99.99%) (μs)
179/179
190/188
243/239
243/239
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
1 in 1017
1 in 1017
1 in 1017
EOL Data Retention
3 months at 40° C
3 months at 40° C
3 months at 40° C
3 months at 40° C
MTBF (M hours)4
2
2
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
0.44%
0.44%
Limited Warranty5
5 years
5 years
5 years
5 years
Electrical
Requirement (DC +/- 10%)
12V
12V
12V
12V
Operating Power States (W, average)
10.75 & 8.75
10.75 & 8.75
10.75 & 8.75
10.75 & 8.75
Idle (W, average)
5.8
5.8
5.8
5.8
Environmental
Operating Temperature6
0° C to 78° C
0° C to 78° C
0° C to 78° C
0° C to 78° C
Non-operating Temperature
-40° C to 85° C
-40° C to 85° C
-40° C to 85° C
-40° C to 85° C
Physical Measurements
Width (mm)
69.85 +/-0.25
69.85 +/-0.25
69.85 +/-0.25
69.85 +/-0.25
Length (mm, max)
100.45
100.45
100.45
100.45
Weight (g, max)
95
95
95
95
z-height (mm)
7.00 +0.2/-0.5
7.00 +0.2/-0.5
7.00 +0.2/-0.5
7.00 +0.2/-0.5


ultrastar-dc-sn200-left-western-digital

Maximum Throughput

Up to 1.2M random read IOPS, ideal for data-intensive workloads

Ultra-low Latency

20μs write latency delivers consistent, extreme performance for high QoS in Enterprise, Cloud, and Hyperscale environments

High Availability

Dual port (2x2) capable 2.5-inch SFF drives enable high availability system designs

HH-HL Add-in Card
U.2 2.5-Inch Drive
General
Interface
PCIe 3.0 x8 NVMe™ 1.2
PCIe 3.0 x4 or 2x2 NVMe™ 1.2
Form Factor
HH-HL add-in card
U.2 2.5-inch drive
Capacity1
3 DW/D: 6.4TB / 3.2TB / 1.6TB
1 DW/D: 7.68TB / 3.84TB / 1.92TB
3 DW/D: 6.4TB / 3.2TB / 1.6TB / 800GB
1 DW/D: 7.68TB / 3.84TB / 1.92TB / 960GB
Maximum Terabytes Written (TBW)
3 DW/D: 35,040 / 17,520 / 8,760
1 DW/D: 14,016 / 7,008 / 3,504
3 DW/D: 35,040 / 17,520 / 8,760 / 4,380
1 DW/D: 14,016 / 7,008 / 3,504 / 1,752
Performance
Sequential Read (max MiB/s, 128KiB)
6,170
3,350
Sequential Write (max MiB/s, 128KiB)
2,200
2,100
Random Read (max IOPS, 4KiB)
1,200,000
835,000
Random Write (max IOPS, 4KiB)
3 DW/D: 200,000
1 DW/D: 75,000
3 DW/D: 200,000
1 DW/D: 75,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
3 DW/D: 580,000
1 DW/D: 240,000
3 DW/D: 580,000
1 DW/D: 240,000
Write Latency 512B (μs)4
20
20
Reliability
Unrecoverable Bit Error Rate (UBER)
<1 in 1017
<1 in 1017
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
Limited Warranty
5 years
5 years
Data Retention
3-month at 40°C
3-month at 40°C
Power
Requirement (DC, +/- 5%)
3.3V (aux) & 12V
3.3V (aux) & 12V
Operating (W, max)
25
25
Idle (W)
9
9
Physical Size
Z-Height (mm)
14.49
15
Dimensions (width x depth, mm)
167.65 x 68.9
100.45 x 69.85
Weight / without bracket (g, max)
230/229
184/NA
Environmental
Operating Temperature
0° to 55°C (Ambient)
0° to 70°C (Case)
Airflow (LFM)
300
NA

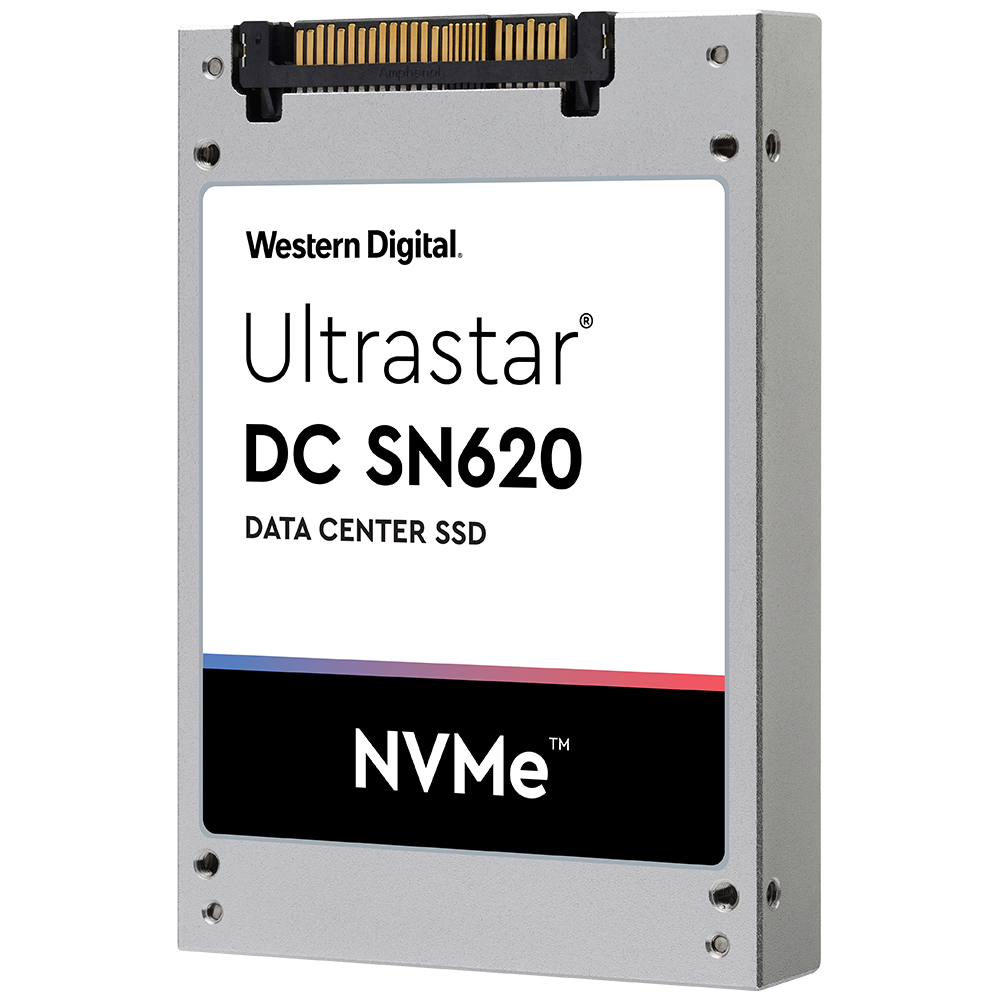

ultrastar-dc-sn620-left-western-digital

Multiple Form Factors

Allows for flexibility of system configuration. Available in U.2, M.2, and E1.L

High Capacity

Available in capacities from 800GB to 30.72TB per drive

Tunable Endurance

0.8 to 2 DWPD and beyond (up to 50% OP)

800GB/960GB
1,600GB/1,920GB
3,200GB/3,840GB
6,400GB/7,680GB
General
Interface
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PPCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
PCIe Gen 3.1 x4 (Compliant to NVMe 1.3)
Form Factor
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
U.2 2.5-inch drive
Capacity1
800GB/960GB
1,600GB/1,920GB
3,200GB/3,840GB
6,400GB/7,680GB
Endurance2 (DW/D)
2/0.8
2/0.8
2/0.8
2/0.8
Flash Memory Technology
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
WDC BiCS3 3D TLC NAND
Maximum Petabytes Written2
2.92/1.4
5.84/2.8
11.68/5.61
23.36/11.21
Performance4
Read Throughput (max MiB/s, Seq 128KiB)
3K
3.1K
3.1K
3.1K
Write Throughput (max MiB/s, Seq 128KiB)
1K/1.1K
2K
1.8K
1.8K
Read IOPS (max, Rnd 4KiB)
414K/413K
473K/472K
468K/469K
469K/467K
Write IOPS (max, Rnd 4KiB)
108K/44K
116K/63K
115K/63K
116K/65K
Mixed IOPS (max, 70/30 R/W, 4KiB)
184K/111K
307K/194K
286K/174K
304K/187K
Read Latency (μs, avg.)5
204/210
208
225/221
225
Reliability
Uncorrectable Bit Error Rate (UBER)
1 in 1017
1 in 1017
1 in 1017
1 in 1017
MTBF6 (M hours)
2
2
2
2
Annualized Failure Rate (AFR)6
0.44%
0.44%
0.44%
0.44%
Availability (hrs/day x days/wk)
24X7
24X7
24X7
24X7
Limited Warranty7
5 years
5 years
5 years
5 years
Power
Requirement (DC +/- 10%)
+12V
+12V
+12V
+12V
Operating Power States (W, typical)
10, 11, 12
10, 11, 12
10, 11, 12
10, 11, 12
Idle (W, average)
< 5W
< 5W
< 5W
< 5W
Physical Size
z-height (mm)
7.00 +0.2/-0.5 (including labels)
7.00 +0.2/-0.5 (including labels)
7.00 +0.2/-0.5 (including labels)
7.00 +0.2/-0.5 (including labels)
Dimensions (width x length x mm)
69.85 (+/- 0.25) x 100.45
69.85 (+/- 0.25) x 100.45
69.85 (+/- 0.25) x 100.45
69.85 (+/- 0.25) x 100.45
Weight (g, max)
95
95
95
95
Environmental
Operating Temperature8
0° C to 78° C
0° C to 78° C
0° C to 78° C
0° C to 78° C
Non-operating Temperature9
-40° C to 85° C
-40° C to 85° C
-40° C to 85° C
-40° C to 85° C


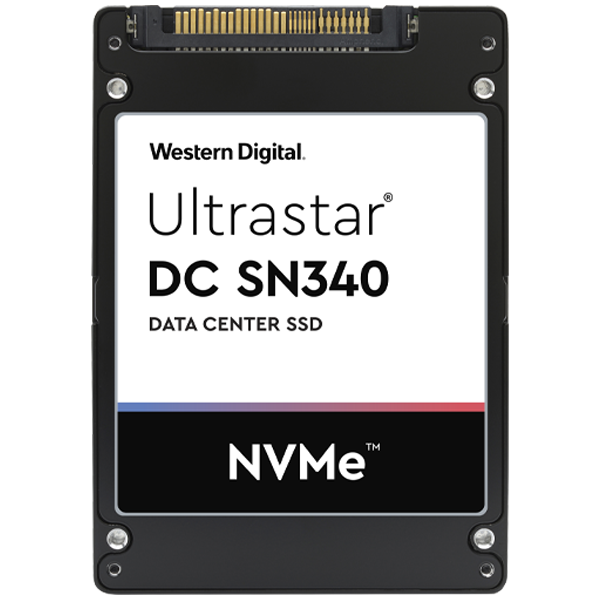

ultrastar-dc-sn620-left-western-digital

Outstanding Read Performance

Powered Gen3x4. Based on in-house design

Power Efficient

Exceptional Random Read IOPs/Watt

Optimized for Warm Storage

Designed for large block writes of modern workloads

U.2
Configuration
Interface
NVMe Rev1.3c / PCIe Gen3x4
Form Factor
U.2 7mm
Capacity1
3840GB & 7680GB
Endurance (Drive writes per day, DW/D)7
1.2
Flash Memory Technology
WDC BiCS4 TLC 3D NAND
NAND
Western Digital 98L TLC
Sequential Read/Write
Up to 3.1GiB/s / 1.4 GiB/s
Random Read
Up to 420L IOPs
Random Write
Up to 7K IOPs
Mixed Random Read/Write
Up to 139K IOPs
Reliability (MTBF)
2 Million Hours
Reliability (UBER)
1 in 1016 bits read
Limited Warranty
5 Years
Active Power (Max)
6.5W


Highlights

  • Up to 1.2M random read IOPS
  • Capacities from 800GB to 7.68TB
  • High-performance PCIe Gen 3 & NVMe compliant
  • Enterprise Data Durability Features
  • Options for read-intense and mixed-use workloads
  • Enterprise-class 2M hour MTBF4 reliability rating

Applications and Workload

  • Mission-Critical Database Applications
  • Highest Performance Tier Storage
  • Cloud and Hyperscale Computing
  • Analytical Processing (OLAP)
  • Boot and Edge
  • Hyper-Converged Infrastructure (HCI)
  • Virtualization
